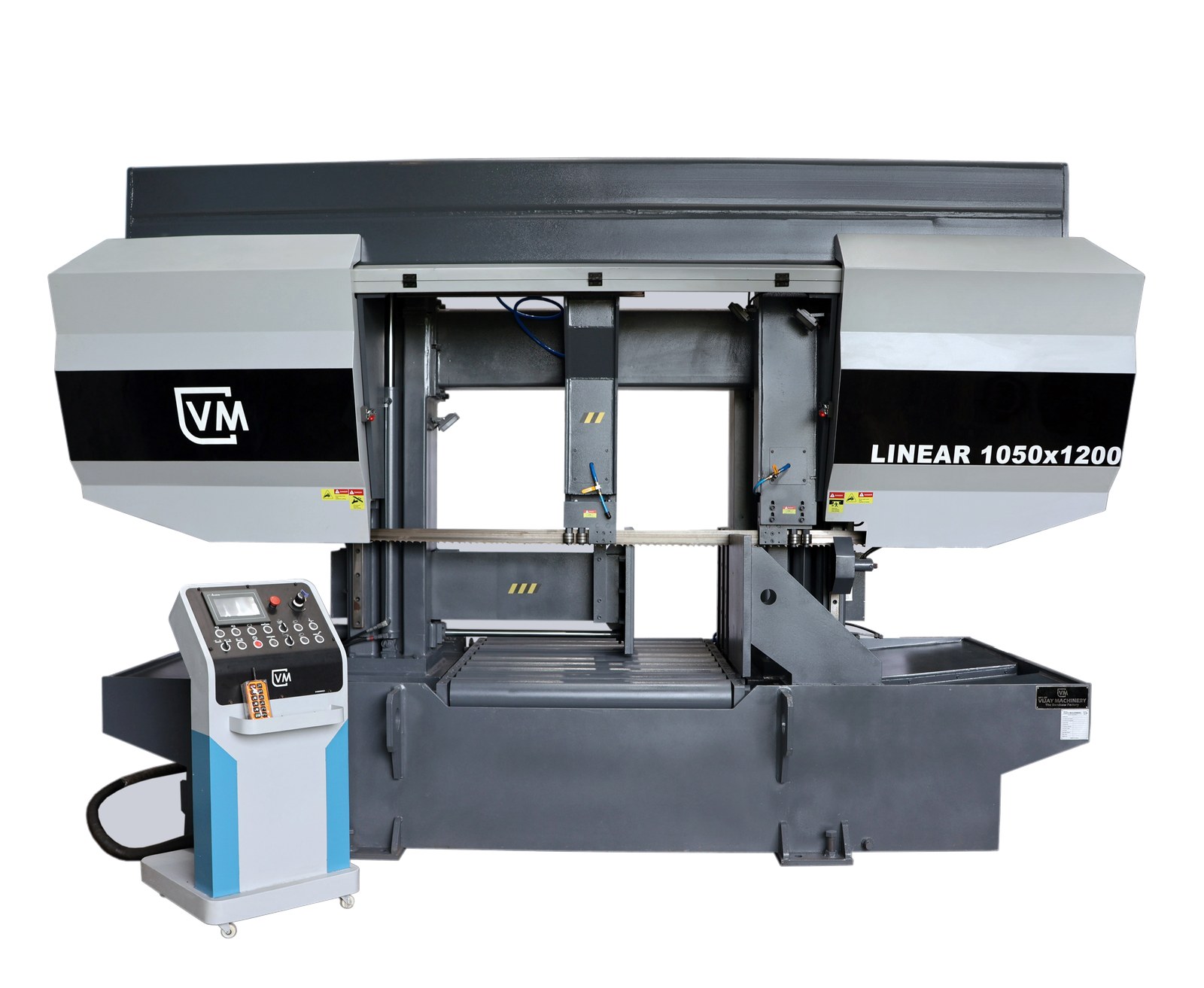

Double Column – Semi-Automatic Band Saw Machine
Advance Features
- Auto shut off in case of Blade breakage or slippage.
- Chip brush for effective chip removal from blade.
- Blade Tension Hydraulic
- Working light
- Smart Cutting System ( SCS )
- Material Selection System (MSS)
- NC Control
- Heavy Duty Gear Box
- Automatic Adjust Blade Gide ARM - Wireless Remote Control System
| Parameter | LINEAR 850 | LINEAR 1050 | LINEAR 1500 |
|---|---|---|---|
| Cutting Cap. Round | 850mm | 1050 mm | 1500 mm |
| Cutting Cap. Square | 850(H) x 1000(W) mm | 1050(H) x 1200(W) mm | 1500(H) x 1700(W) mm |
| Blade Size | 9080 x 67 x 1.6 mm | 10770 x 80 x 1.6 mm | 13850 x 80 x 1.6 mm |
| Blade Speed | 15 To 80 m/min | 15 To 80 m/min | 15 To 80 m/min |
| Saw Motor | 12 HP (9 kW) | 15 HP (11.25 kW) | 20 HP (15 kW) |
| Hydraulic Motor | 3 HP (2.25 kW) | 5 HP (3.75 kW) | 5 HP (3.75 kW) |
| Coolant Pump | 0.18 HP | 0.18 HP | 0.18 HP |
| Chip Conveyor Motor | 1 HP (0.75 kW) | 1 HP (0.75 kW) | 1 HP (0.75 kW) |
| Machine Floor Height | 740mm | 740 mm | 740 mm |
| Machine Weight | 6000 kg (Approx.) | 8000 kg (Approx.) | 14700 kg (Approx.) |
| Machine Dimensions | 4200 x 2460 x 1800 mm | 5000 x 2700 x 2100 mm | 6500 x 3100 x 2800 mm |
