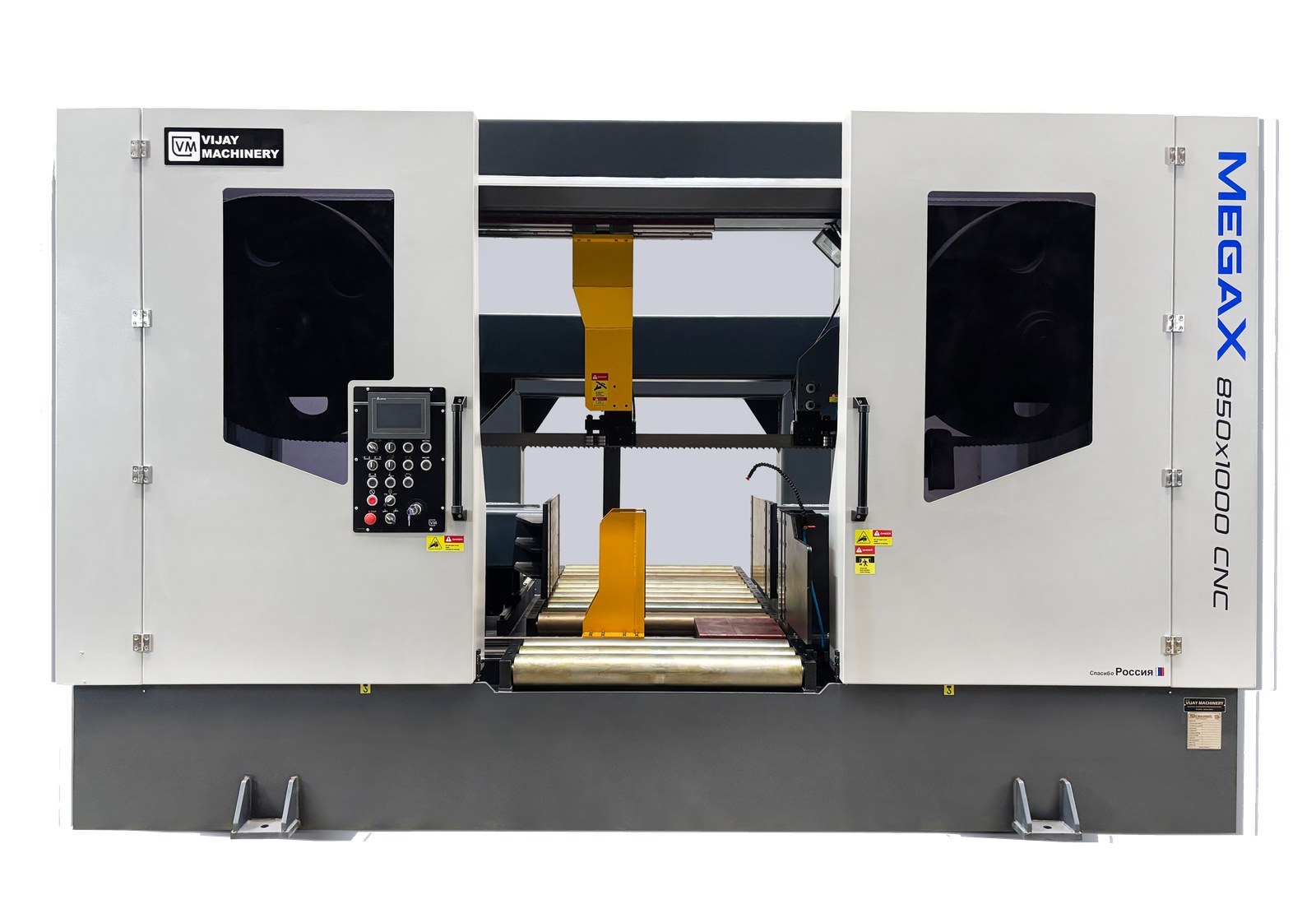

Double Column CNC – Fully-Automatic Band Saw Machine
Advance Features
- CE Safety Protection (Electric)
- LED Working light
- Blade Tension Hydraulic
- Smart Cutting System ( SCS )
- Material Selection System (MSS)
- NC Control
- Heavy Duty Gear Box
- HMI + Buttons
- Main Drive Control VFD (Inverter)
- Material Detection Device
- Hydraulic Cooling Fan(Radiator)
- Chip brush for effective chip removal from blade.
- Saw frame height selector gauge
- Main Helical Gear Drive
- Single Vise Clamping
- Split Vise Clamping
- Automatic Adjust Blade Gide ARM
- Auto shut off in case of Blade breakage or slippage.
- Material Feeding hydraulic Driven
| Parameter | MegaX 650x800CNC | MegaX 850x1000CNC |
|---|---|---|
| Cutting Cap. Round | 650mm | 850mm |
| Cutting Cap. Square | 650mm(H) x 800mm(W) | 850mm(H) x 1000mm(W) |
| Blade Size | 8200x67x1.6mm | 9080x67x1.6mm |
| Blade Speed | 15 to 80 m/min | 15 to 80 m/min |
| Saw Motor | 12HP, 9kw | 15HP, 11.25kw |
| Hydraulic Motor | 3HP-2.25kw | 3HP-2.25kw |
| Coolant Pump | 0.18HP | 0.18HP |
| Multiple Feed Stock | 800mm x 9time | 800mm x 9time |
| Saw Feed Speed | 1-350mm/min | 1-350mm/min |
| Machine Weight | 6500kg | 8000kg |
