Double Column Miter Cutting – Semi-Automatic Band Saw Machine
Advance Features
- Chip brush for effective chip removal from blade.
- Blade Tension Manual
- Working light
- Warm Gear Box
- Manual Adjust Blade Gide ARM

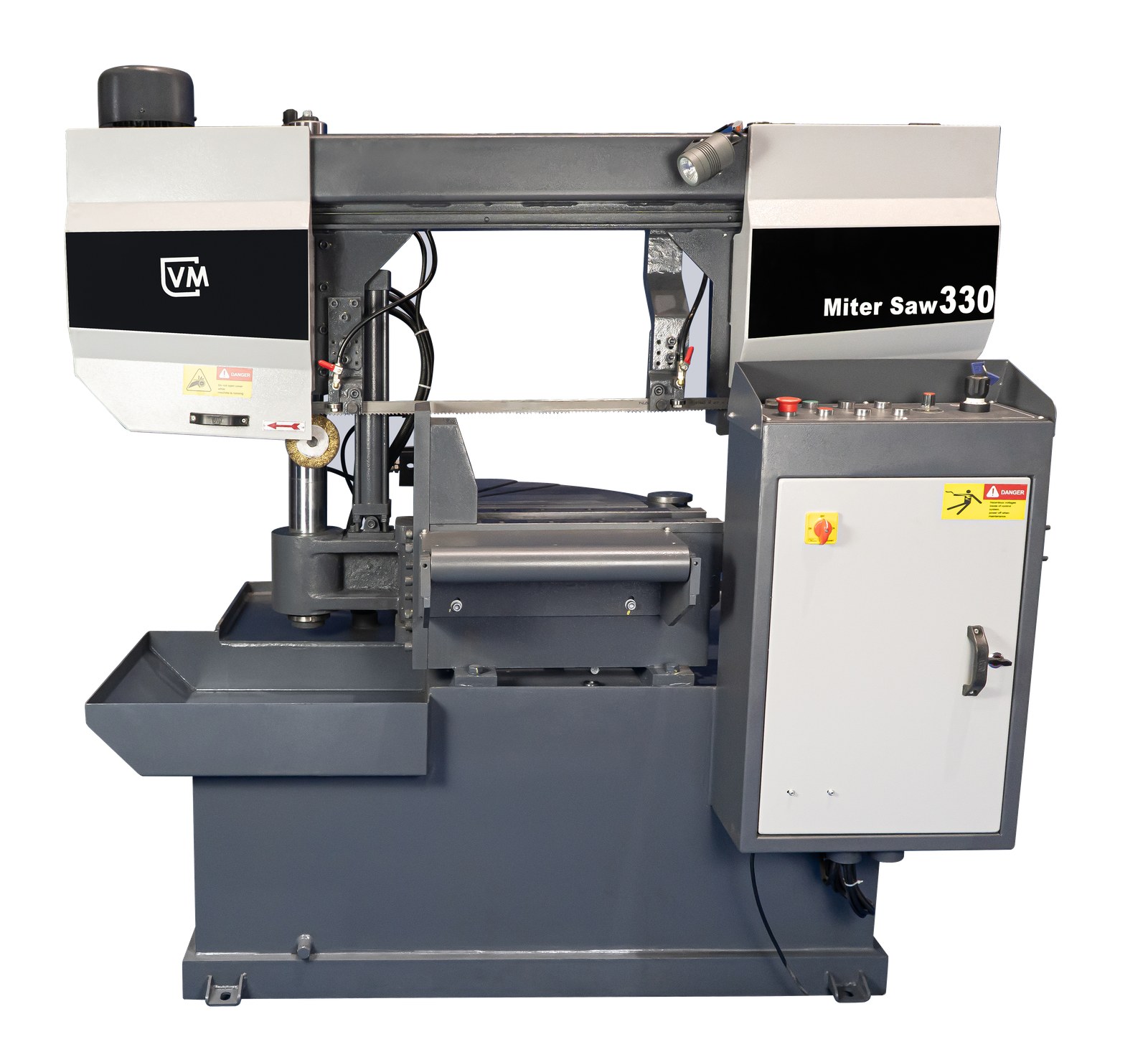

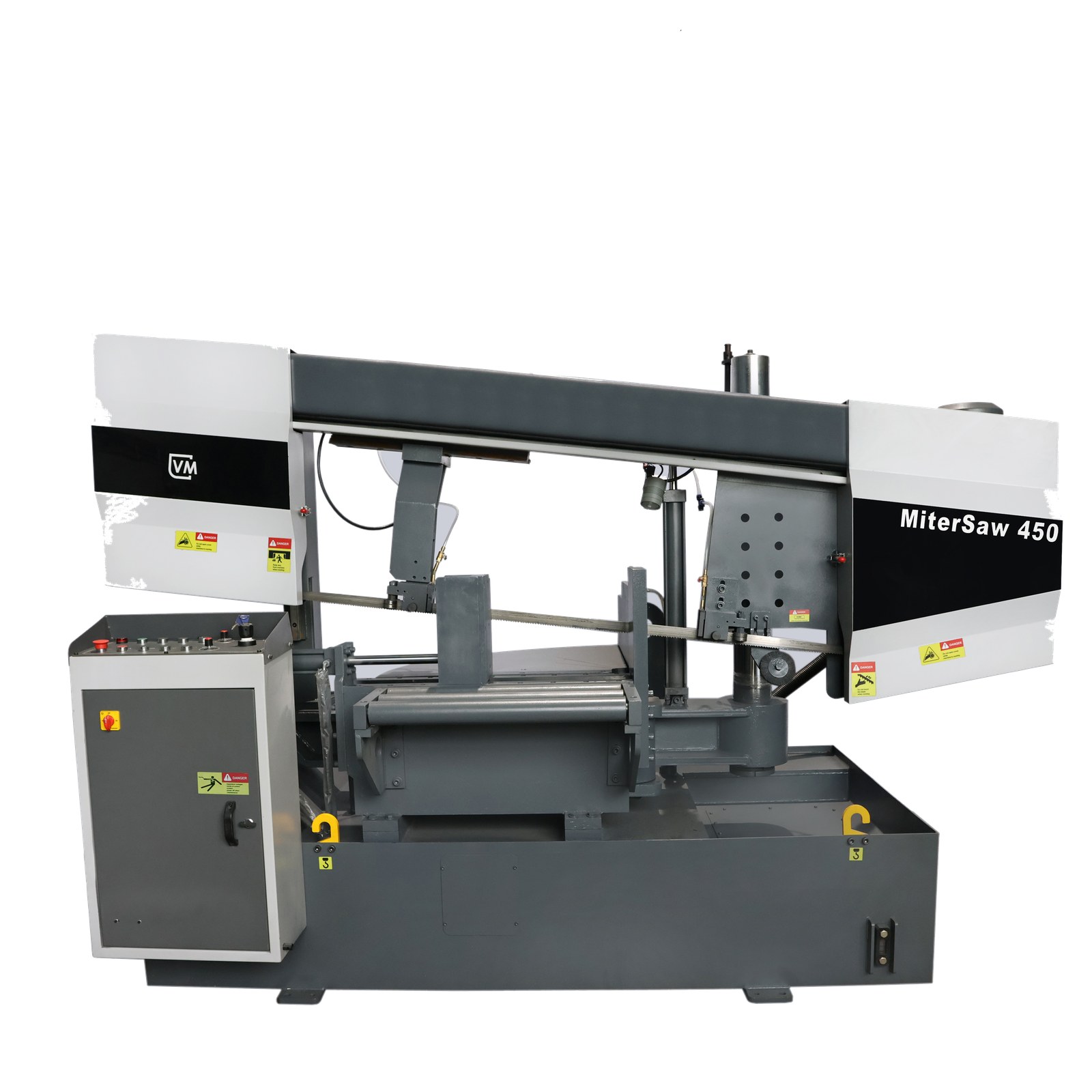

| Parameter | MiterSaw 330 | MiterSaw 450 | MiterSaw 650 |
|---|---|---|---|
| Cutting Cap. Round | 300mm | 450mm | 650mm |
| Cutting Cap. Square | 330mm(H) x 400mm(W) | 450mm(H) x 600mm(W) | 650mm(H) x 800mm(W) |
| Cutting Cap. 45° | 330mm(H) x 330mm(W) | 380mm(H) x 380mm(W) | 600mm(H) x 600mm(W) |
| Cutting Cap. 60° | 330mm(H) x 170mm(W) | 380mm(H) x 290mm(W) | 600mm(H) x 500mm(W) |
| Blade Size | 3760x27x0.9mm | 6060x37x1.1mm | 9000x54x1.3mm |
| Blade Speed | 15 to 80 m/min (VFD) | 15 to 80 m/min | 15 to 80 m/min |
| Saw Motor | 3HP, 2.75kw | 5HP, 3.75kw | 7.5HP, 5.5kw |
| Hydraulic Motor | 1HP-0.75kw | 1HP-0.75kw | 2HP-1.25kw |
| Coolant Pump | 0.18HP | 0.18HP | 0.18HP |
| Machine Weight | 980kg Approx. | 2100kg Approx. | 3500kg Approx. |
| Machine Size (L x W) | 1900 x 1600 mm | 4340 x 1800 mm | 4700 x 2060 mm |
| Height (Min-Max) | 1100 - 1500 mm | 2150 - 2250 mm | 2650 - 2900 mm |
