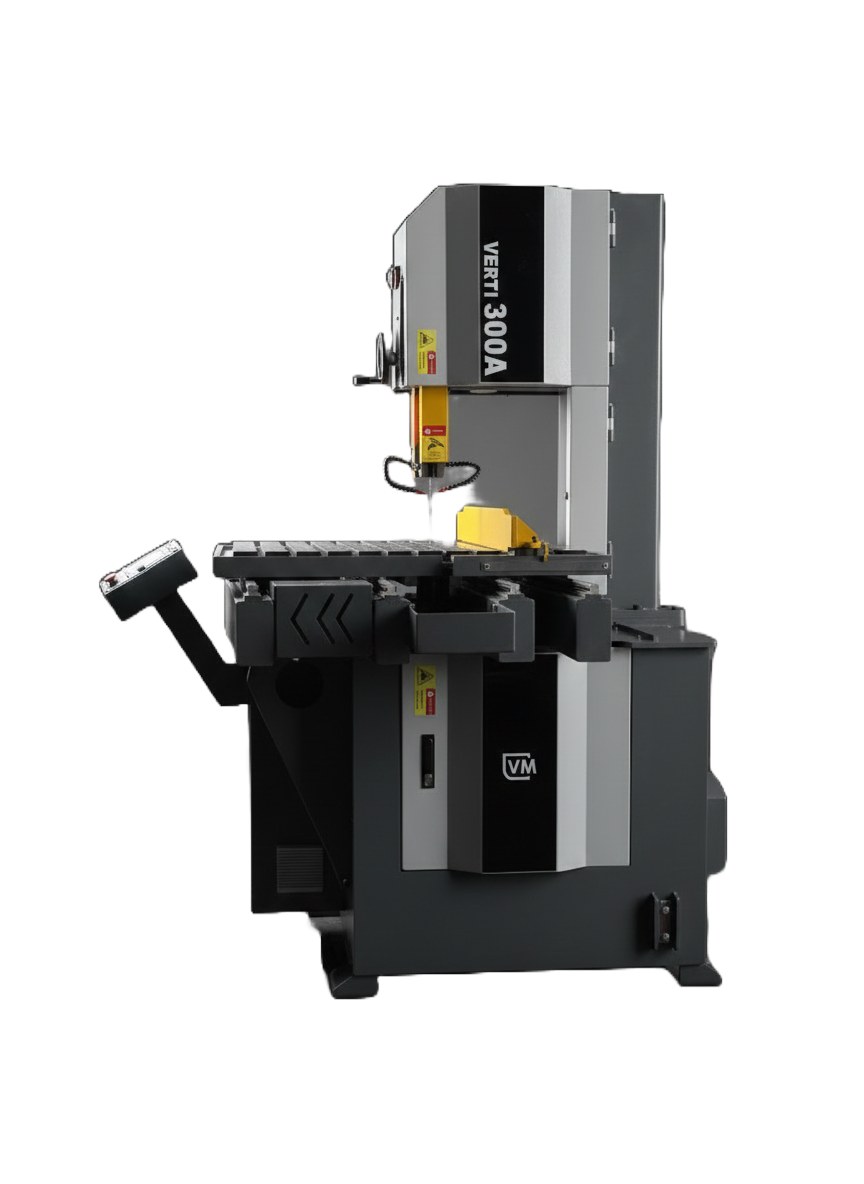

Vertical Fully-Automatic – Band Saw Machine
Advance Features
- Helical Gear Drive
- Origin System ( After The Cutting is Completed the goes to its home position)
- Auto Change Blade Speed
- Manual blade tension
- Table Movement Servo motor With Ball Screw
- Table Movement With LM Guide
- Job Stopper
| Parameter | Verti 300A | Verti 400A |
|---|---|---|
| Max. Cutting Height | 300 mm | 400 mm |
| Max. Cutting Length | 400 mm | 550 mm |
| Max. Cutting Width | 1000 mm | 1250 mm |
| Min. Cutting (H x W) | 15 x 15 mm | 15 x 10 mm |
| Feeding Length | 1000 mm | 1250 mm |
| Table Size | 980 x 970 mm | 1380 x 1270 mm |
| Blade Size | 4115 x 34 x 1.1 mm | 5000 x 41 x 1.3 mm |
| Blade Speed (VFD) | 15 - 100 m/min | 15 - 100 m/min |
| Saw Motor | 5 HP (3.75 kW) | 7.5 HP (5.5 kW) |
| Servo Motor | 1 kW | 1.5 kW |
| Chip Conveyor Motor | 1 HP (0.75 kW) | 1 HP (0.75 kW) |
| Coolant Motor | 0.18 HP | 0.18 HP |
| Table Height | 1170 mm | 1400 mm |
| Machine Weight | 1400 kg | 2650 kg |
| Machine Dimensions | 1700 x 1400 x 2230 mm | 1980 x 2810 x 2920 mm |
