Double Column – Semi-Automatic Band Saw Machine
Advance Features
- Saw frame height selector gauge
- Warm Gear Drive ( Bronze Warm Wheel ) ( PB2)
- Origin System ( After The Cutting is Completed the goes to its home position)
- Auto Change Blade Speed
- Manual blade tension
- Working light

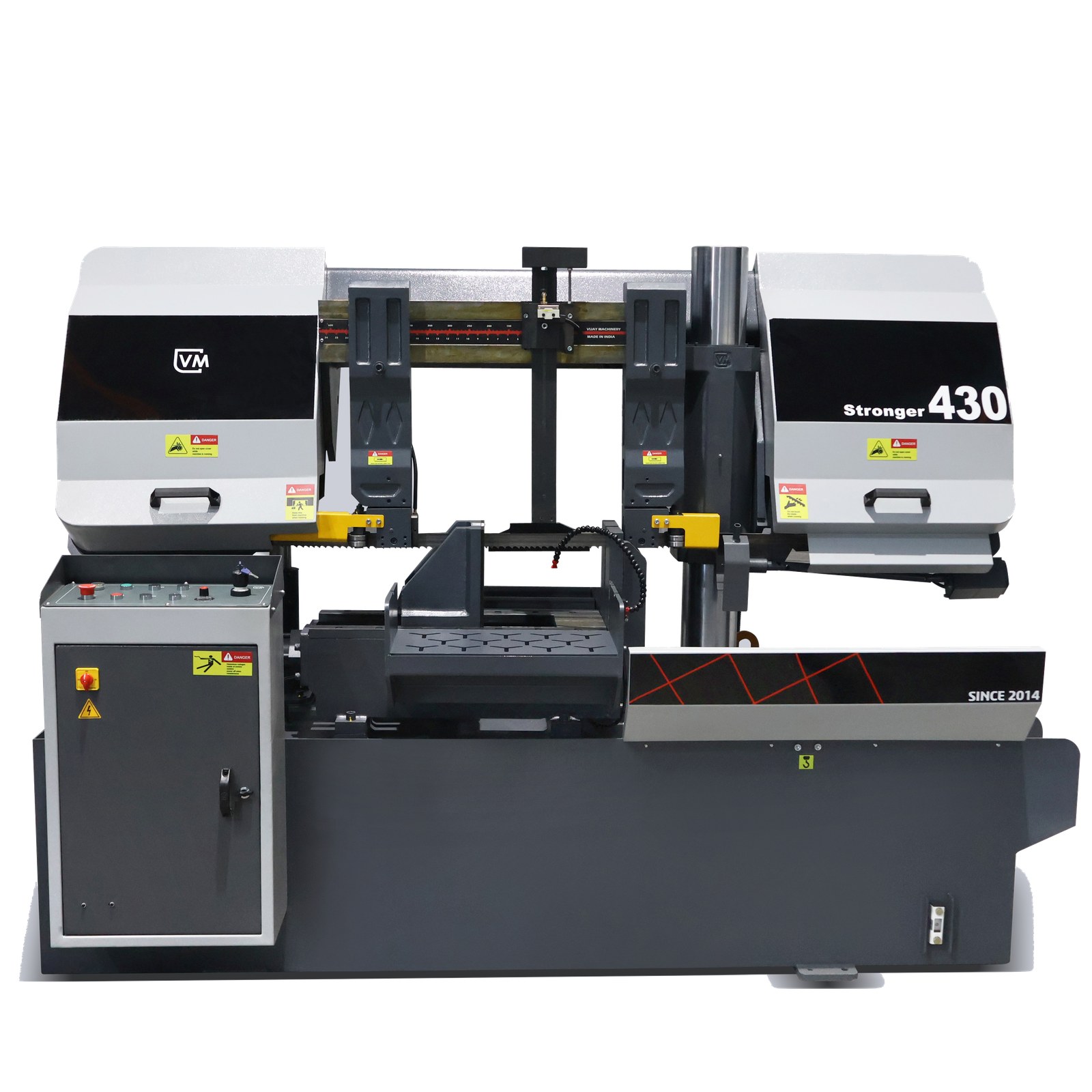

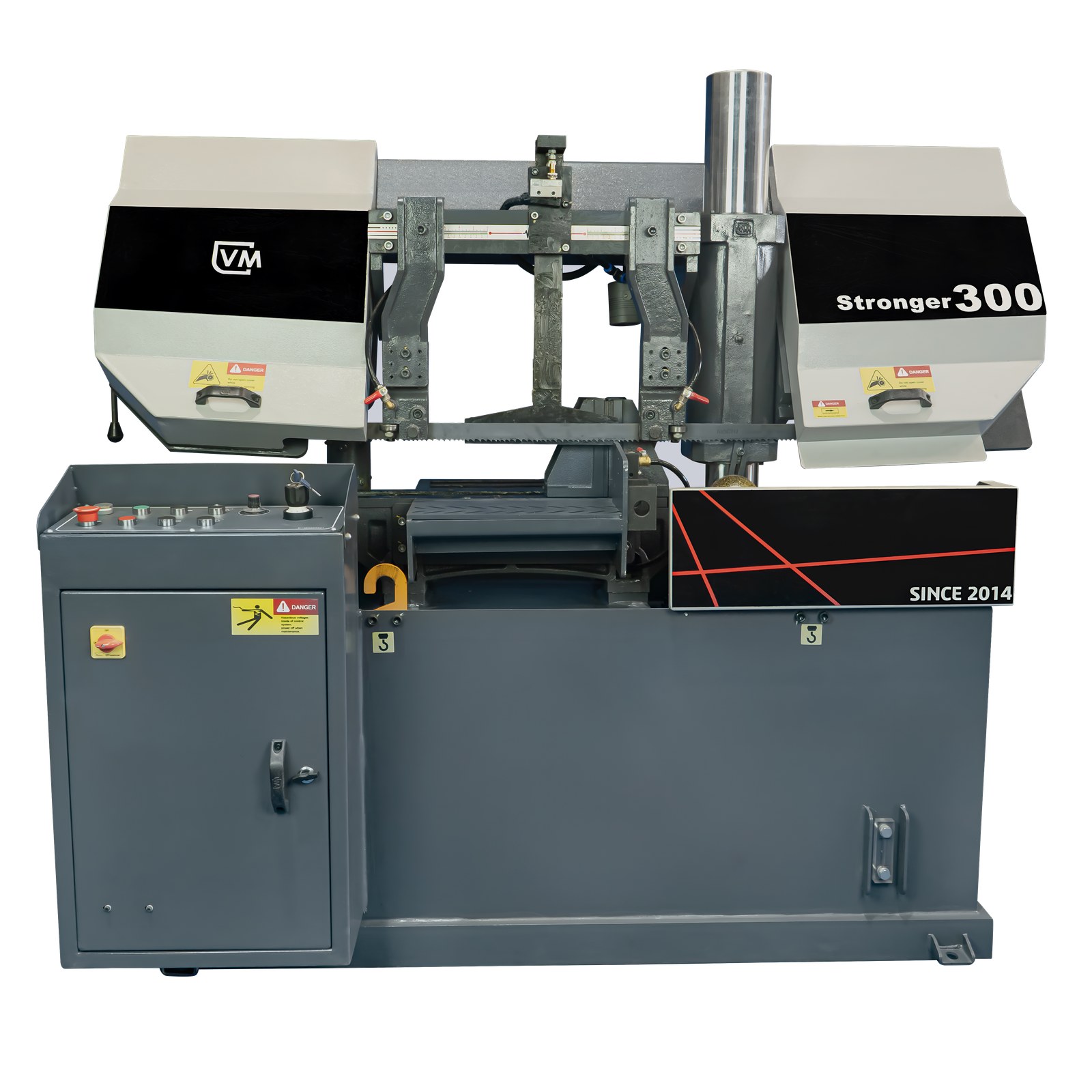

| Parameter | Stronger 300 | Stronger 330 | Stronger 430 |
|---|---|---|---|
| Cutting Cap. Round | 300 mm | 330 mm | 430 mm |
| Cutting Cap. Square | 300 x 300 mm | 330 x 400 mm | 430 x 500 mm |
| Blade Size | 3760 x 34 x 1.1 mm | 4100 x 34 x 1.1 mm | 5300 x 41 x 1.3 mm |
| Blade Speed (VFD) | 15 - 80 m/min | 15 - 80 m/min | 15 - 80 m/min |
| Saw Motor | 3 HP (2.25 kW) | 5 HP (3.75 kW) | 7 HP (5.5 kW) |
| Hydraulic Motor | 1.0 HP (0.75 kW) | 1.0 HP (0.75 kW) | 1.0 HP (0.75 kW) |
| Coolant Pump | 0.18 HP | 0.18 HP | 0.18 HP |
| Hydraulic Oil Tank | 30 Liters | 30 Liters | 40 Liters |
| Coolant Tank | 40 Liters | 40 Liters | 70 Liters |
| Machine Weight | 800 kg | 900 kg | 2175 kg |
| Dimensions (WxLxH) | 1900x950x1500 mm | 2060x1320x1910 mm | 2850x1700x2410 mm |
