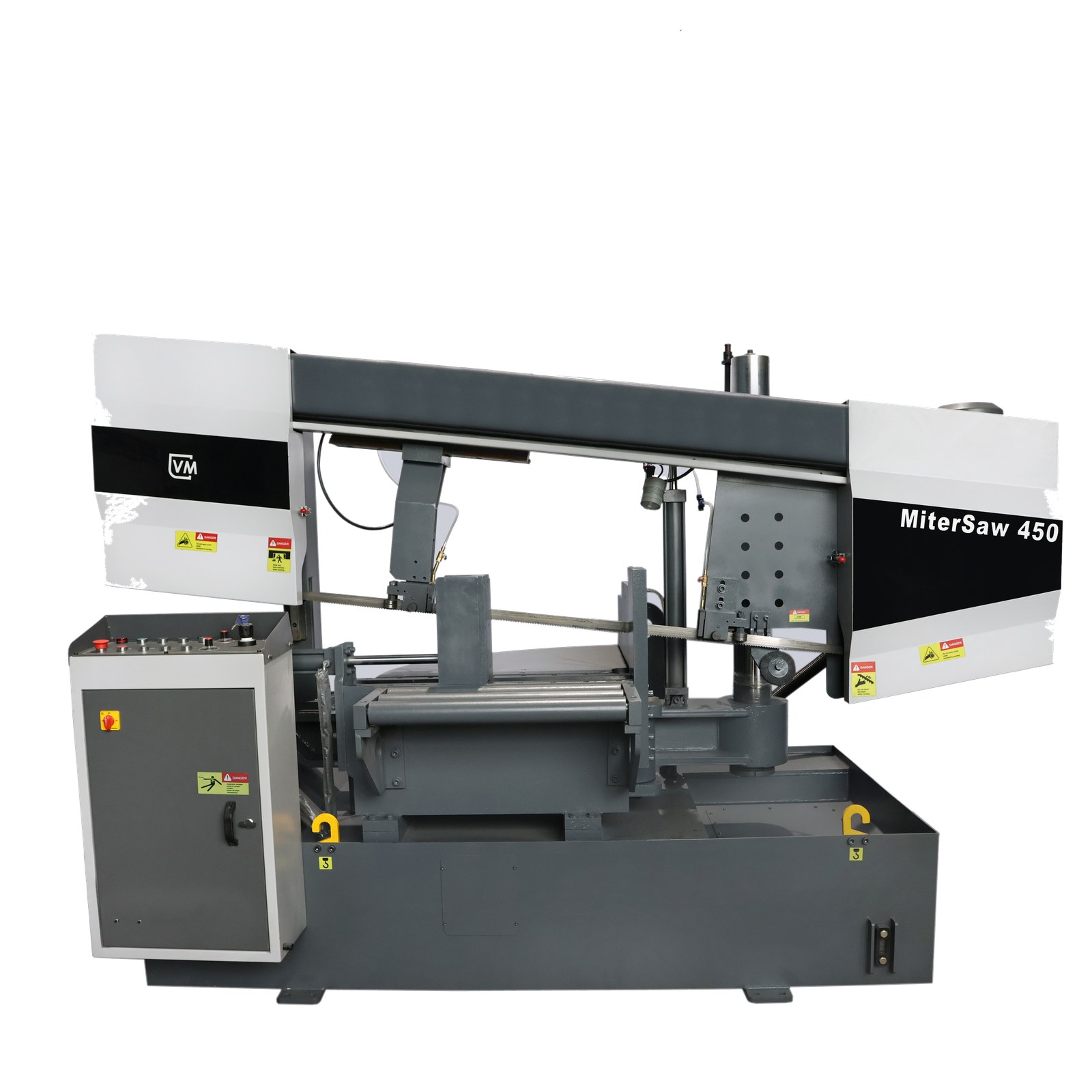

Swing Type Miter Cutting – Semi-Automatic Band Saw Machine
Advance Features
- Chip brush for effective chip removal from blade.
- Blade Tension Manual
- Working light
- Warm Gear Box
- Manual Adjust Blade Gide ARM
| Parameter | MITERSAW3045DS | MITERSAW4565DS |
|---|---|---|
| Cutting Capacity 90° (Round) | 300 mm | 450 mm |
| Cutting Capacity 90° (Square) | 250(H) x 450(W) mm | 400(H) x 650(W) mm |
| Cutting Capacity ±45° (Round) | 300 mm | 450 mm |
| Cutting Capacity ±45° (Square) | 300(H) x 300(W) mm | 450(H) x 400(W) mm |
| Cutting Capacity -60° (Round) | 225 mm | 250mm |
| Cutting Capacity -60° (Square) | 250(H) x 225(W) mm | 450(H) x 250(W) mm |
| Blade Size | 4115 x 27 x 0.9 mm | 6300 x 34 x 1.1 mm |
| Blade Speed | 15 To 100 m/min (VFD Drive) | 15 To 100 m/min (VFD Drive) |
| Saw Motor | 3 HP (2.25 kW) | 5 HP (3.75 kW) |
| Hydraulic Motor | 1 HP (0.75 kW) | 1 HP (0.75 kW) |
| Vice Clamping Type | Hydraulic | Hydraulic |
| Angle Swivel / Display | Manual / Precision Angle Scale | Manual / Precision Angle Scale |
| Machine Weight | 910 kg (Approx.) | 2050 kg (Approx.) |
| Dimensions (LxWxH) | 2270 x 1160 x 1660 mm | 3350 x 2050 x 2150 mm |
