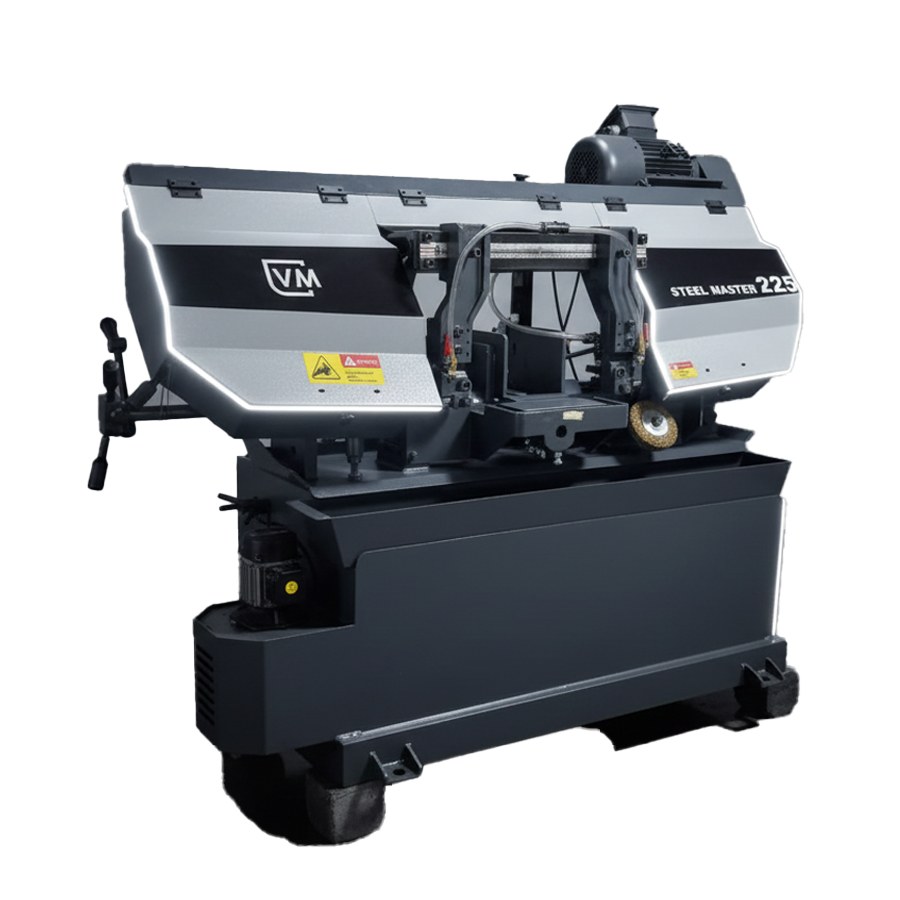

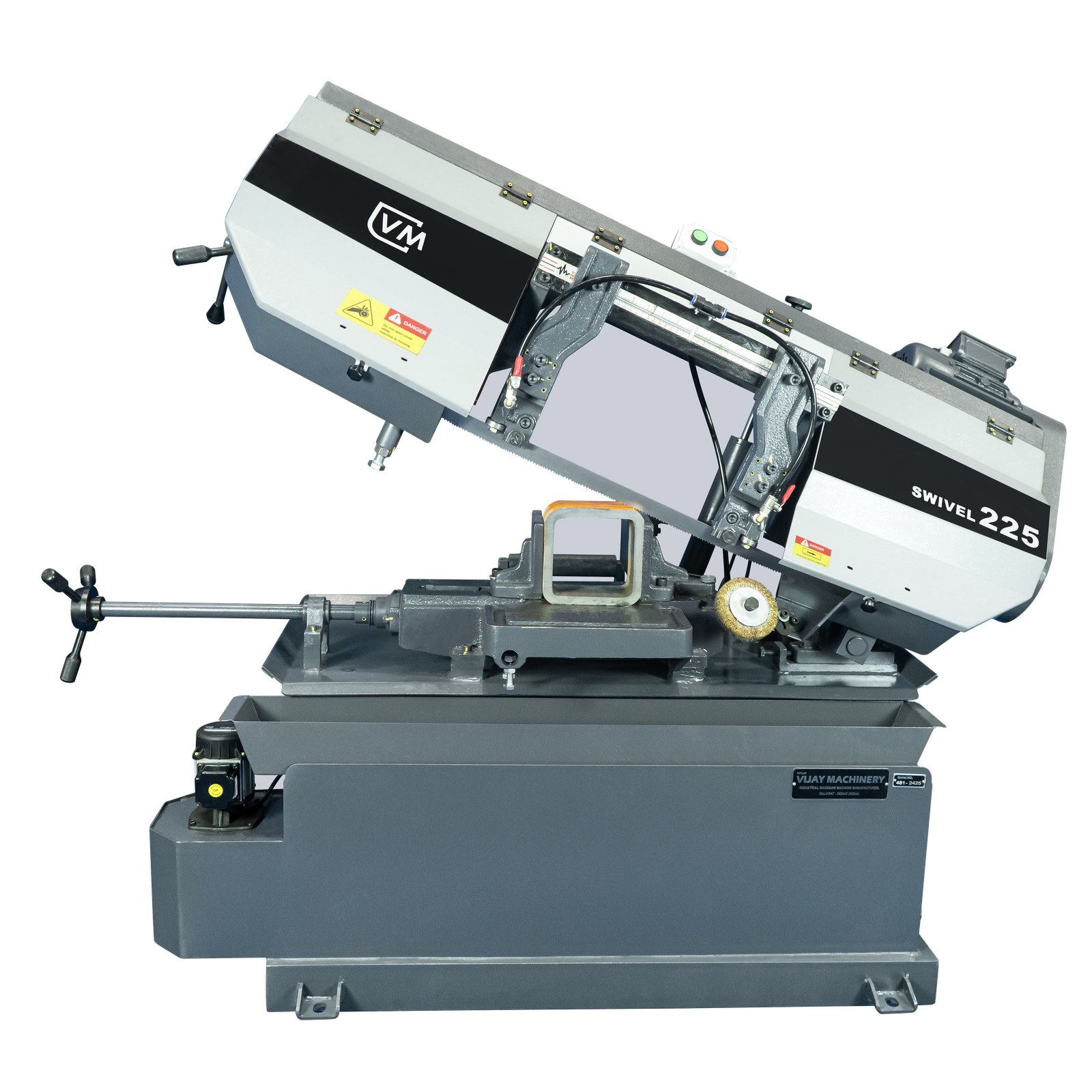

Swing Type High Speed – Fully-Automatic Band Saw Machine
Advance Features
- Chip brush for effective chip removal from blade.
- German Technology Blade Guide
- High Efficiency Gear Box ( Bronze Wheel)
- Self-Centering Vice
- Chip Collection Basket
| Parameter | Classic 225 | Swivel 225 | Steel Master 225 | Classic 300 | Swivel 300 | Steel Master 330 |
|---|---|---|---|---|---|---|
| Round Cap. | 225mm | 225mm | 225mm | 300mm | 300mm | 330mm |
| Square Cap. | 150x300mm | 150x300mm | 150x300mm | 300x300mm | 150x300mm | 330x400mm |
| Angle (45°) | — | 100x100mm | — | — | 200x200mm | — |
| Blade Speed (m/min) | 25-50-70 | 25-50-70 | 20-40-70 | 25-50-70 | 25-50-70 | 25-50-70 |
| Saw Motor | 1HP | 1HP | 2HP | 2HP | 2HP | 3HP |
| Coolant Pump | 0.15HP | 0.15HP | 0.15HP | 0.15HP | 0.15HP | 0.15HP |
| Blade Size | 3000x27x0.9 | 3000x27x0.9 | 3000x27x0.9 | 3760x27x0.9 | 3760x27x0.9 | 3760x34x1.1 |
| Machine Size (LxWxH) | 1570x1060x650 | 1570x1060x650 | 1570x1060x650 | 1970x1200x740 | 1970x1200x740 | 1970x1200x740 |
| Weight | 360kg | 360kg | 370kg | 600kg | 600kg | 610kg |
