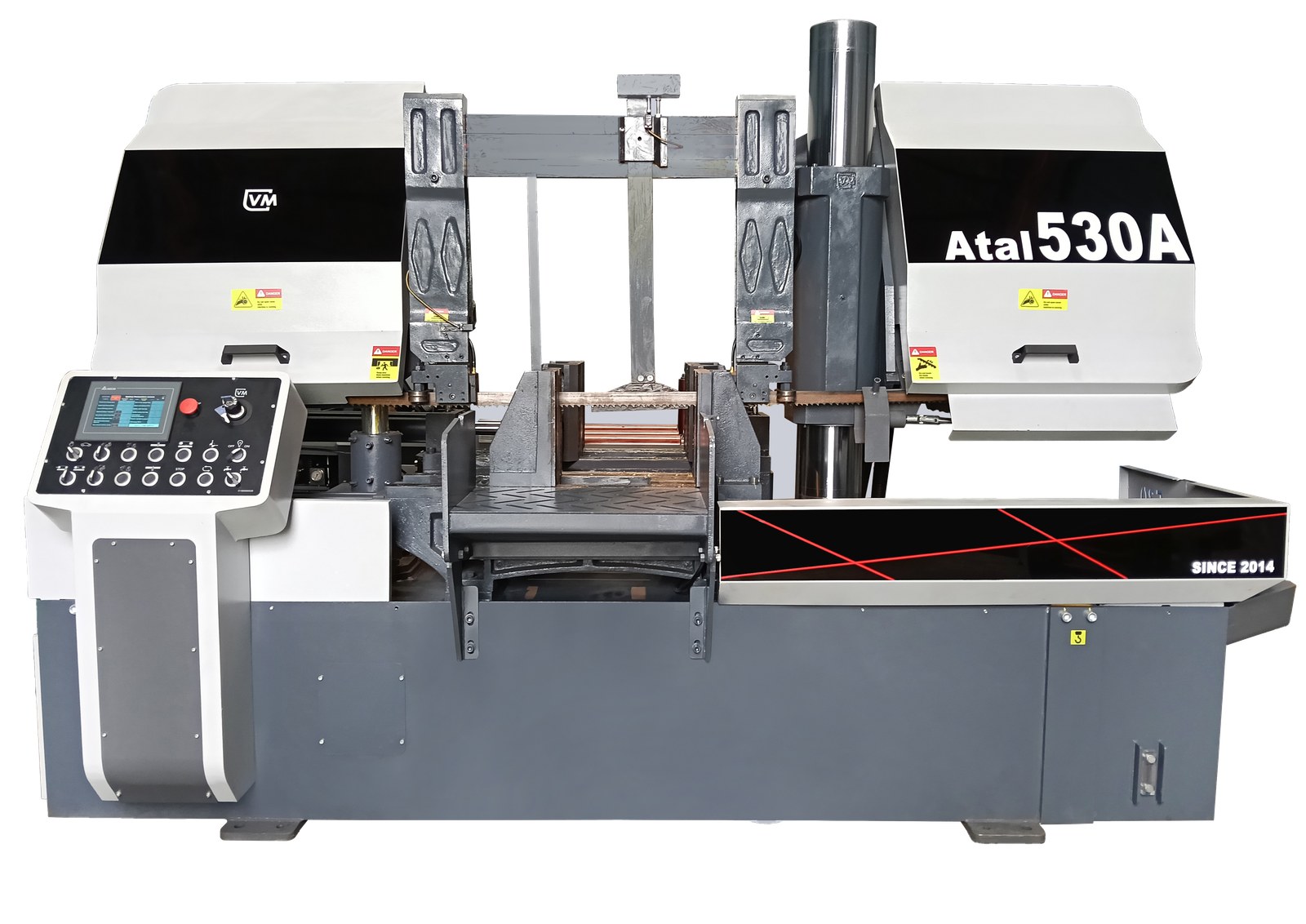

Double Column High Speed – Fully-Automatic Band Saw Machine
Advance Features
- Auto shut off in case of Blade breakage or slippage.
- Automatic Chip Brush
- Split Cutting vice
- Saw frame height selector gauge
- Chip Collection Basket
- Hydraulic blade tension
- Safety inter lock Dore
- Working light
- NC Control
- Material Detection Device
- Automatic Chip convers
- Top Clamping Argument
| Parameter | ATAL300NC | ATAL430A | ATAL 530A |
|---|---|---|---|
| Cutting Cap. Round | 300 mm | 430 mm | 530 mm |
| Cutting Cap. Square | 300 x 300 mm | 430 x 430 mm | 530 x 530 mm |
| Bundle Cutting Size | 300 x 160 mm | 400 x 200 mm | 500 x 200 mm |
| Blade Size | 4115 x 34 x 1.1 mm | 5100 x 41 x 1.3 mm | 6350 x 41 x 1.3 mm |
| Blade Speed (VFD) | 15 To 80 m/min | 15 To 80 m/min | 15 To 80 m/min |
| Saw Motor | 5HP (3.75 kW) | 7HP (5.5 kW) | 10HP (7.5 kW) |
| Hydraulic Motor | 2HP (1.5 kW) | 2HP (1.5 kW) | 2HP (1.5 kW) |
| Coolant Pump | 0.18 HP | 0.18 HP | 0.18 HP |
| Hydraulic Tank | 60 Liter | 60 Liter | 60 Liter |
| Coolant Tank | 80 Liter | 80 Liter | 100 Liter |
| Multiple Feed Stock | 500 mm x 9 times | 500 mm x 9 times | 500 mm x 9 times |
| Machine Weight | 2100 KG | 3200 KG | 4500 KG |
| Machine Dimension | 2350x2350x1520 mm | 2600x2450x1750 mm | 3150x2560x2100 mm |
